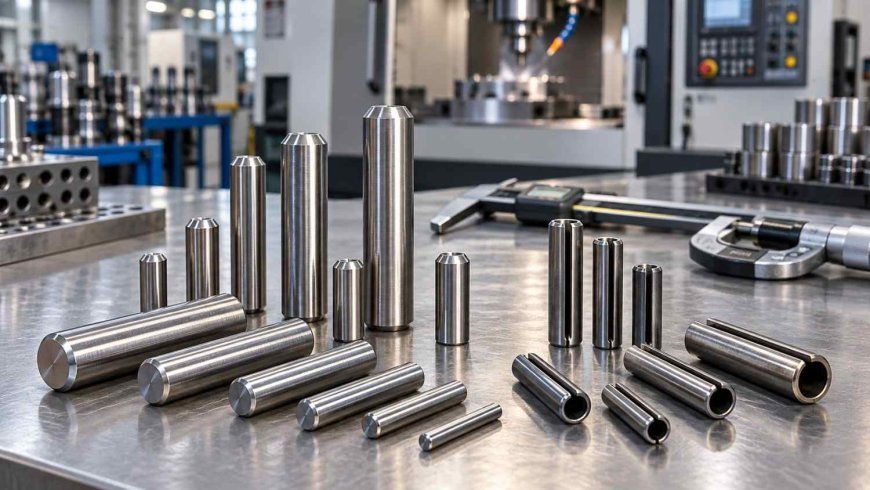

Dowel Pins for Strong and Accurate Machine Assembly

A presline is established on a Monday: the bolts are torqued, the housing is clean and the shaft still binds. Someone is hammering a pin in at an angle and cracking the bore edge before anyone realizes it on the first thermal cycle. Dowel pins are unobtrusive enough to be overlooked but they do retain the position and some of the loads. Erroneous installation or wrong pin, and the strength you‘ve engineered shows up in the machine nowhere.

Dowel Pins Specification: Strength Comes From the Fit, Not Just the Steel

Straight Dowel Pins and Shear Capacity

Straight dowel pins in hardened steel handle double-shear loads far better than soft pins of the same diameter. ISO 8734 sets hardness at 550–650 HV30 for this reason. A harder pin resists deformation. A pin that deforms stops locating.

Stainless Steel Dowel Pins

Stainless steel dowel pins are the answer when corrosion would seize a carbon steel pin in its bore. They give up some hardness for that. Most buyers know this. Fewer account for it in the shear calculation.

The Detail Most Buyers Skip

Edge chamfers on the hole. A reamed bore with a sharp entry shaves metal off the pin as it goes in, and those shavings end up between mating faces. Which means a gap you can't see. A small chamfer at the hole mouth and a lead-in on the pin cost almost nothing and keep locating pins from damaging the bore.

Five Questions That Expose Weak Dowel Pins Suppliers

• Pin end geometry. Ask about the chamfer on each end. Bad answer: "ends are cut square." Square ends bite into the bore.

• Diameter control. Ask how the tolerance is held across a lot. Bad answer: "we sort the good ones out." Sorting is not control.

• Heat treatment record. Ask who hardens the pins and how the cycle is logged. Bad answer: "an outside vendor, we don't track it." You've bought a pin with no history.

• Straightness. Ask the permitted bow on a long pin. Bad answer: "it's straight enough." A bowed pin tilts in the hole.

• Rework policy. Ask whether they re-grind rejected stock and resell it. Bad answer: silence. Re-ground pins can be undersize without a visible difference.

How Dowel Pins Strengthen the Build and Protect Your Margin

• Bolts stay in tension. Pins take the shear, so fasteners don't loosen from sideways movement. Fewer warranty returns.

• First-time fit. Correct locating pins let parts seat without trial-and-error shimming, which saves line hours.

• Predictable installation force. Consistent diameter lets operators use a set press stroke instead of a mallet.

• Longer service intervals. Alignment dowel pins in hardened steel resist fretting in a correct bore, so rebuild cycles stretch.

• Fewer field disputes. A documented hardness range gives your quality team something to point to.

More difficult than it appears: even the finest pin is not going to succeed in a poorly reamed hole, and this is only your part of the deal.

Dowel Pins Manufacturers in India and Why Proximity Cuts Rework

Available numerous dowel pins manufacturers in India catering the auto and machinery belts around Pune, Chennai and Gurugram. The pertinent question is whether the supplier grinds or only trades. A dowel pins manufacturing company in India which has its own grinding can change a diameter within a day when your reaming procedure moves. When the customer shortlists dowel pins suppliers in India, then speak to them on the phone about a drawing revision presents the credible test. If you require best dowel pins manufacturers in India then this call reveals more to you than any brochure. That‘s why, Autosco Fasteners produces pins in house.

Why We Chamfer Pin Ends Before We Pack Them

We've seen what a square-cut end does to a reamed bore, so every pin leaves our floor with a controlled chamfer on both ends. It's an extra operation. We do it anyway. Diameter is maintained through our CNC machining and centerless grinding setup across bulk runs, and therefore uniform ends are included, because a diameter measurement with a rough end increases damage to the hole.

Strong Assembly Starts With a Pin That Goes In Straight

Dowel pins are also a test of customer care equal to that given on purchase. Check your chamfers, your reamed holes and your press process before blaming the supplier. Better still, audit them before the next build.

FAQs

Which dowel pins give the best shear strength?

Dowel pins which are metallic are usually hardened straight dowel pins. It should be noted that when comparing stainless steel dowel pins of the same diameter, the load they can take would be less. So if stainless steel is needed, then go for a larger diameter.

How should I install alignment dowel pins?

Hold them firmly with a controllable stroke, never with a hammer. Ensure the hole has a lead-in chamfer and, in the case of blind holes, a vent.

Do locating pins need to be hardened?

For repetitive assembly, yes. For a one-off in a soft housing, unhardened may work but the pin will probably suffer “wear”.

What separates reputable dowel pins manufacturers from the rest?

Heat treatment records, controlled end geometry and the willingness to quote a tolerance in writing.

Can dowel pins suppliers match a sample pin?

Yes, we can, if you send the pin and the mated hole size. Worn samples are difficult, because the worn dimension may not be the original.
